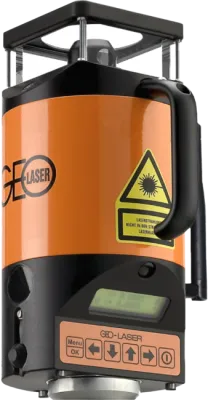

GEO-Laser RL-87L Rotary Laser Level
PRODUCT OVERVIEW

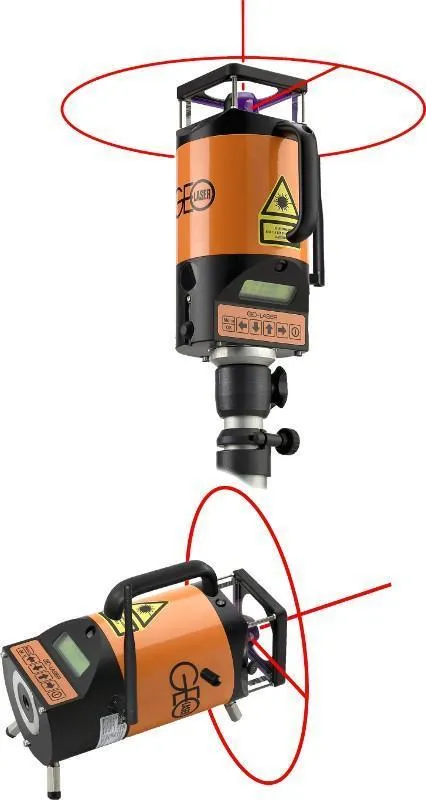

The RL-87L is an all-round laser for horizontal and vertical use capable of electronic self-levelling over three axes. Equipped with a beam split prism in the rotor head, it can also be used as a square or plumb laser. It emits a stationary or rotating laser beam, which turns into a light plane.
FEATURES
-
Manual rotor adjustment
Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down with bubble level in rotor head. -
Special laser beam quality
Diode laser with visible laser beam, high-powered lens, high life expectancy and low power consumption. -
Robust metal housing
Plastic-coated, swept and filled with nitrogen, 100 % watertight. -

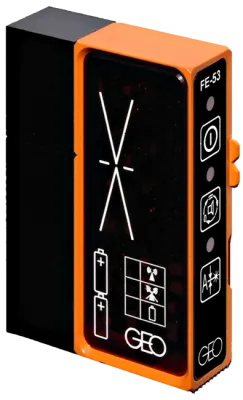

Automatic fixing of the laser light plane

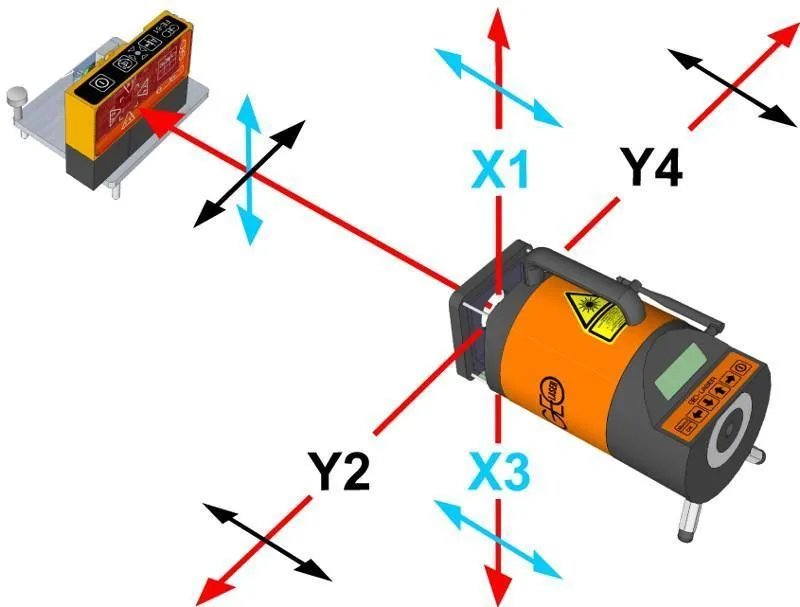

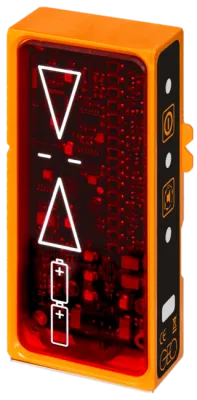

By pressing a button automatic search and fixing of the laser light plane of the Y axis. The function is as simple as it is ingenious: The rotating laser beam is received by the locking receiver FE-53 and then automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy to /- 0.5 mm/100 m. -

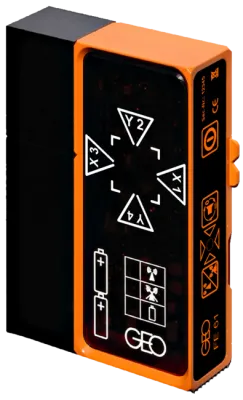

Automatic fixing of the plumb beam
As soon as the laser beam hits the locking receiver FE-61, it is automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy up to ± 1 mm/100 m. Operation is possible horizontal, vertical, in alignment, with every inclination and even on swaying platforms. -
Checking and adjustment
Simple, fast and accurate! In conjunction with the LE-72, the automatic adjustment of the horizontal light plane is comfortably possible.This offers more security and increases accuracy. -

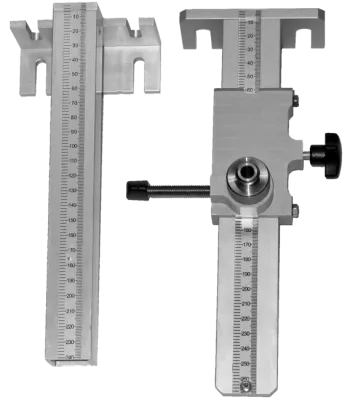

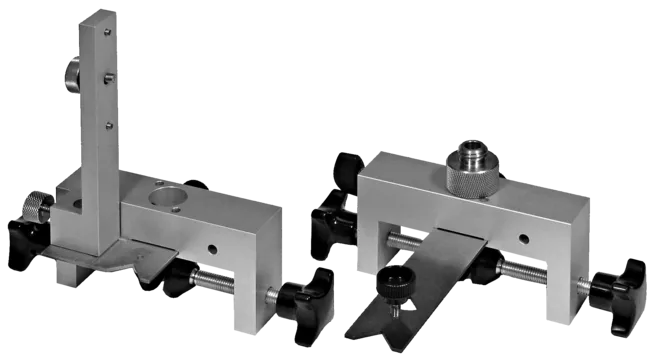

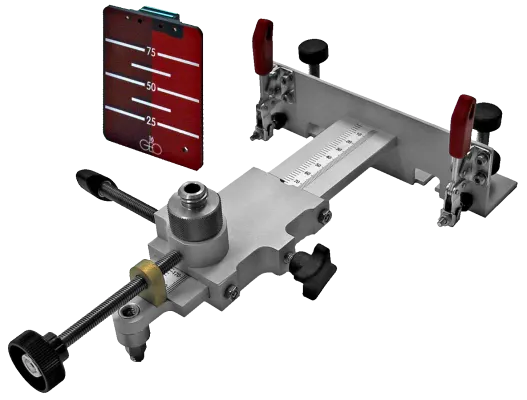

Reliable system accessories
for the best possible operation. -
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements.
