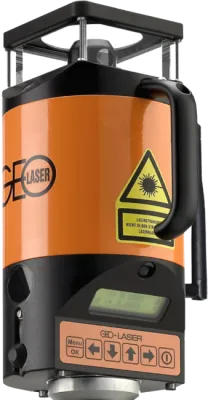

GEO-Laser PL-95L Fully Automatic Precision Rotary Laser Level
PRODUCT OVERVIEW
The PL-95L is an all-round laser for horizontal and vertical use capable of electronic self-levelling over three axes. Equipped with a beam split prism in the rotor head, it can also be used as a square or plumb laser. It emits a stationary or rotating laser beam, which turns into a light plane.
FEATURES
-
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Special laser beam quality
Diode laser with visible laser beam, high-powered lens, high life expectancy and low power consumption. -
Robust metal housing
Plastic-coated, swept and filled with nitrogen, 100 % watertight. -
Lithium ion rechargeable battery
Operation time to 28 hours with one charge. -
Manual rotor adjustment
Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down with bubble level in rotor head. -
Automatic fixing of the laser light plane

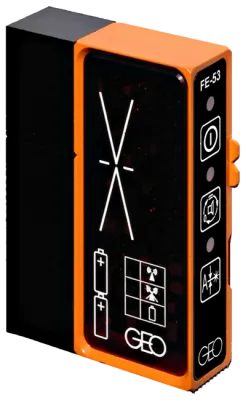

By pressing a button automatic search and fixing of the laser light plane of the Y axis. The function is as simple as it is ingenious: The rotating laser beam is received by the locking receiver FE-53 and then automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy to /- 0.5 mm/100 m. -
Automatic fixing of the plumb beam

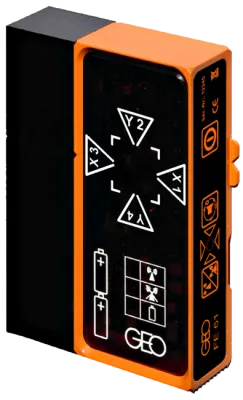

As soon as the laser beam hits the locking receiver FE-61, it is automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy up to ± 1 mm/100 m. Operation is possible horizontal, vertical, in alignment, with every inclination and even on swaying platforms. -

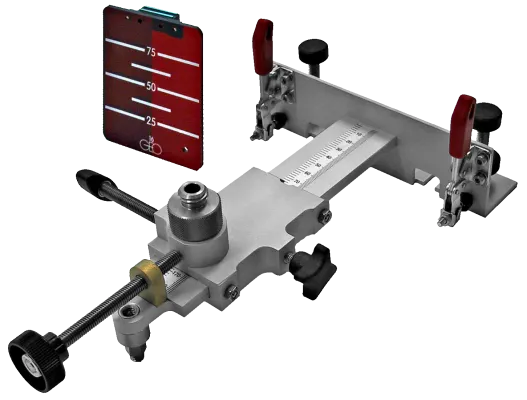

Checking and adjustment
Simple, fast and accurate! In conjunction with the LE-71, the automatic adjustment of the horizontal light plane is comfortably possible. This offers more security and increases accuracy.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
| Laser class | 2, < 1 mW |
|---|---|
| Laser | Diode visible red 635 nm |
| Laser range | from 0,5 m up to 100 m, Ø 200 m |
| Beam diameter at laser | at laser 5 mm |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 0,025 mm ± 0,024mm/m |
| Direction setting | ± 5 % |
| Operating time | up to 28 hours |
| External power supply | 11 V DC to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | 0° C to 40° C |
| Weight | 3,4 kg |
| Adjustment | possible in the field without having to open the device |
| Locking automatic plumb beam | up to 75 m with receiver FE-61 |
